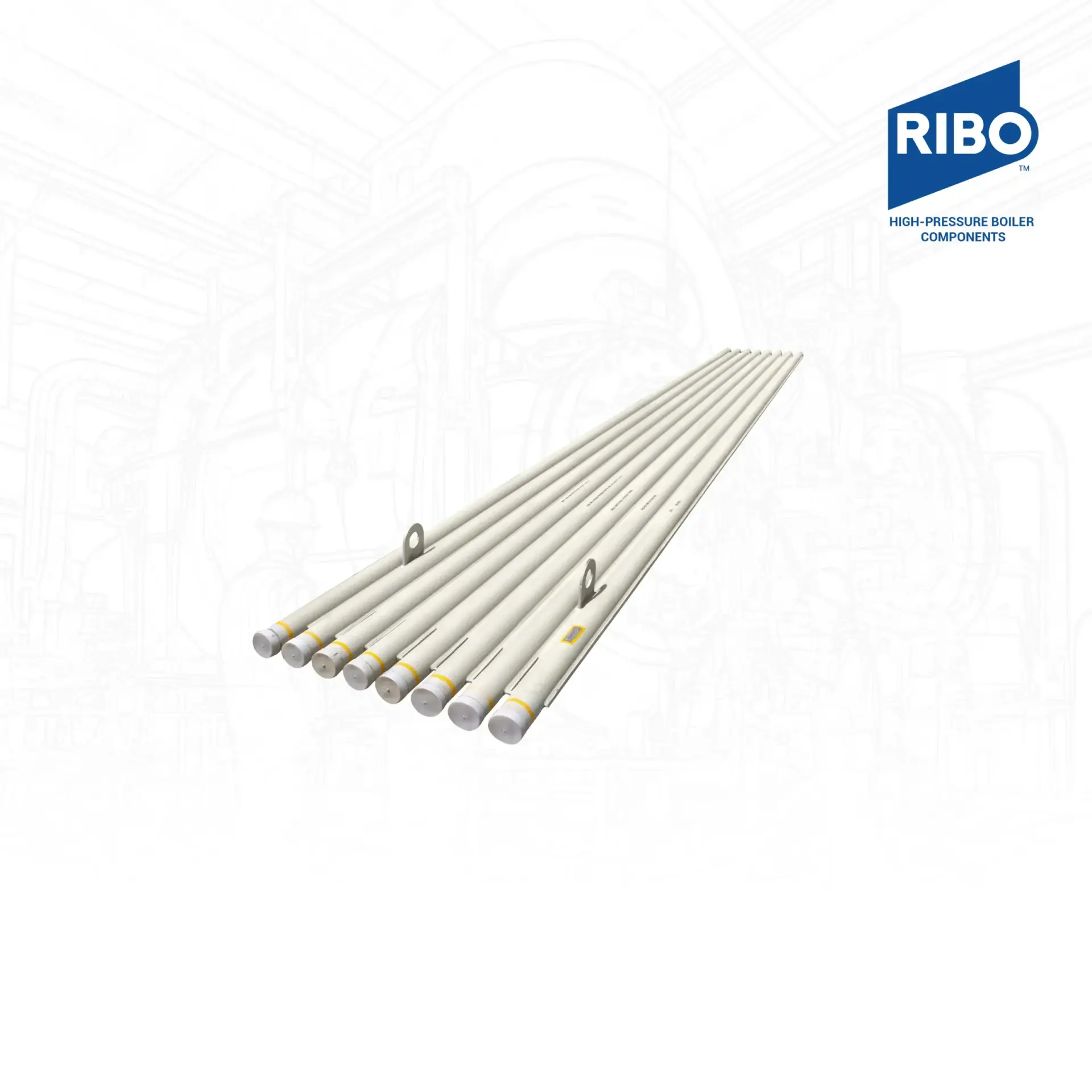

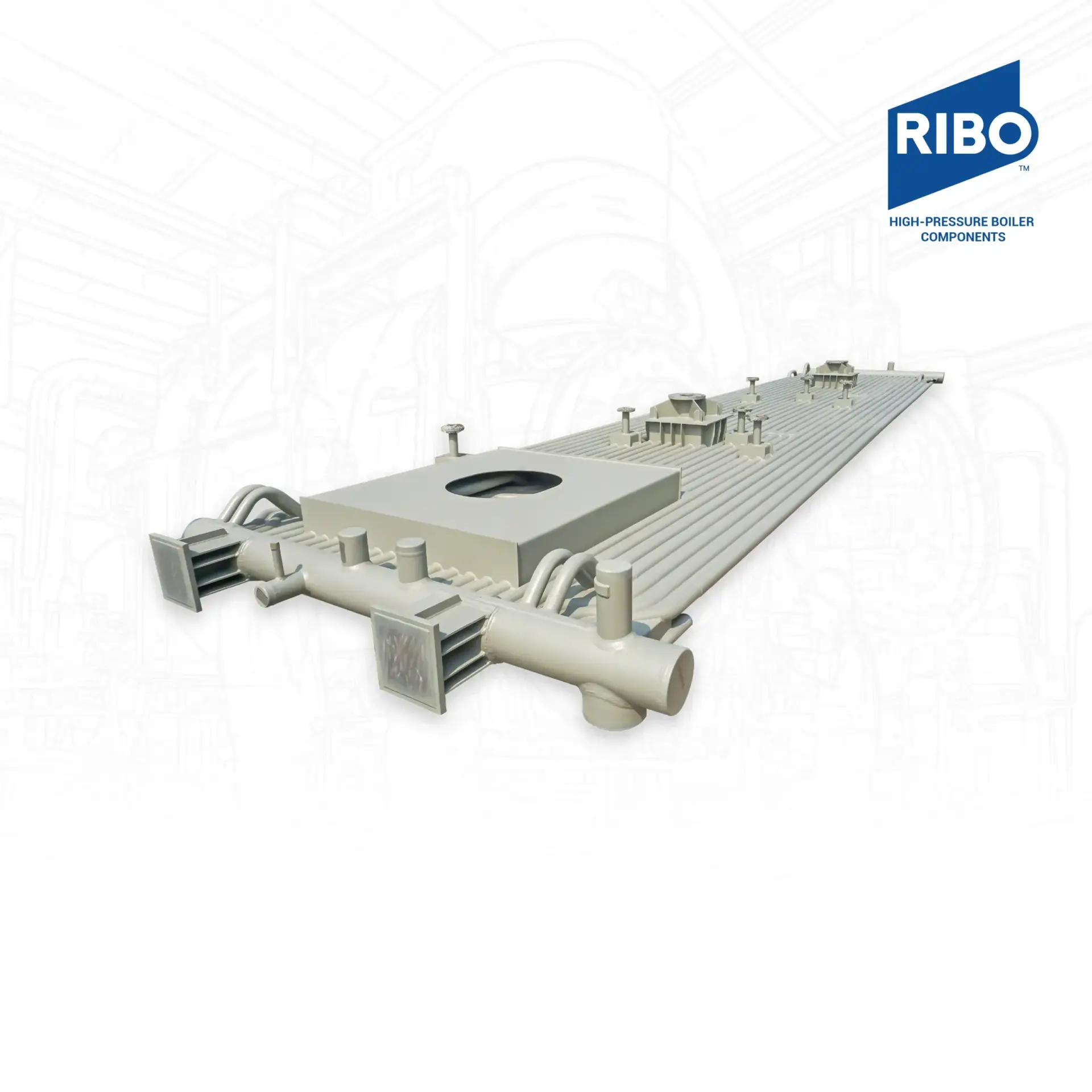

Waterwall Panels

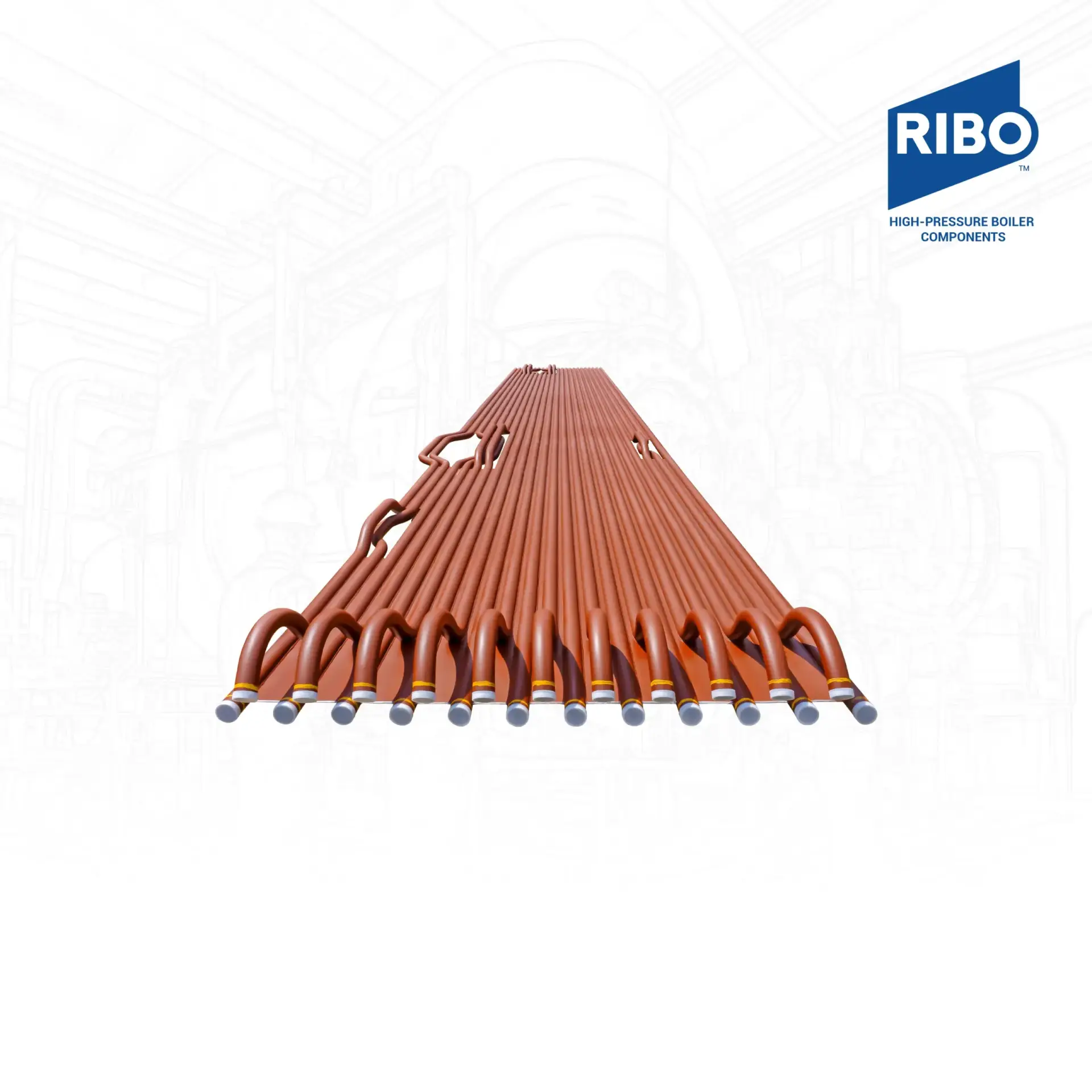

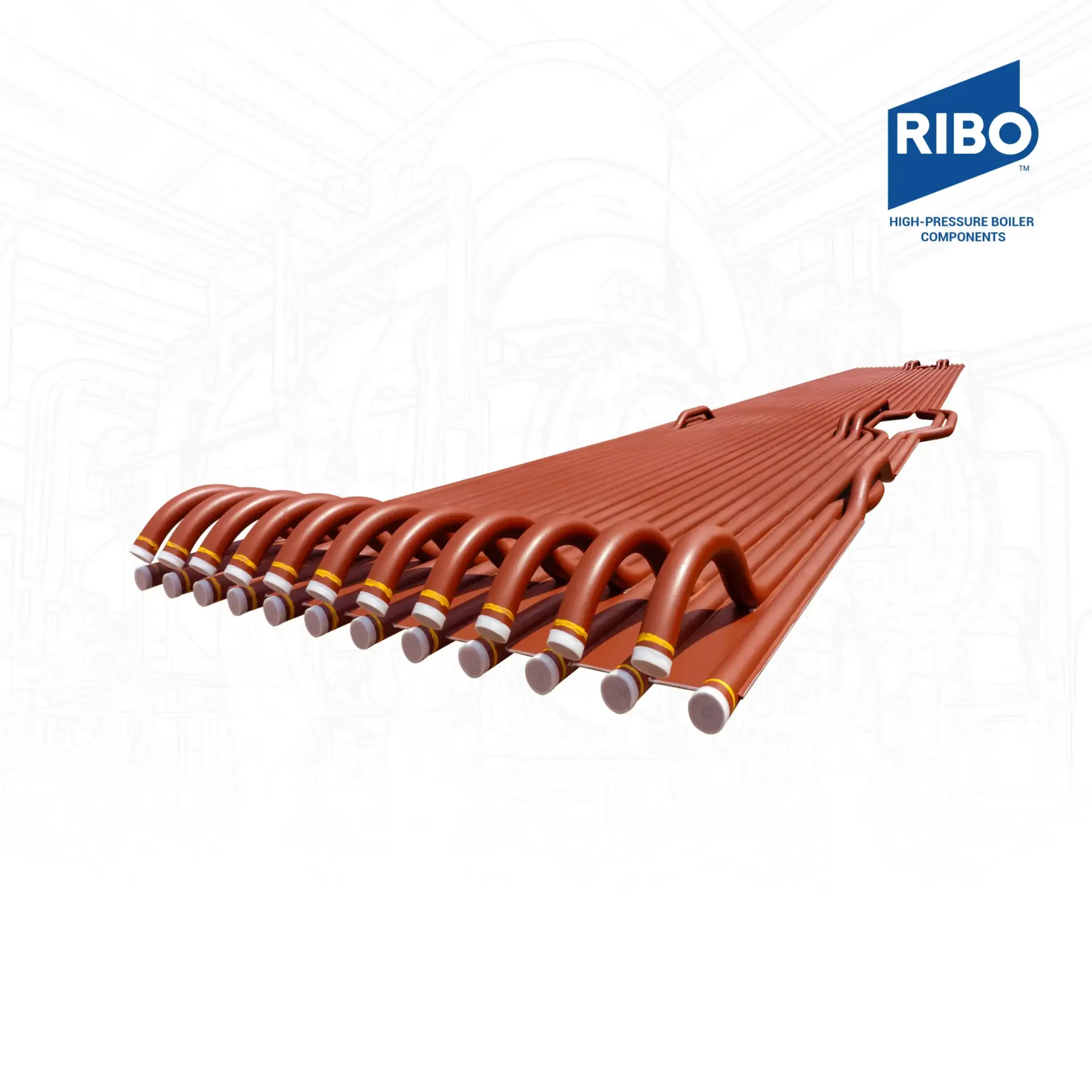

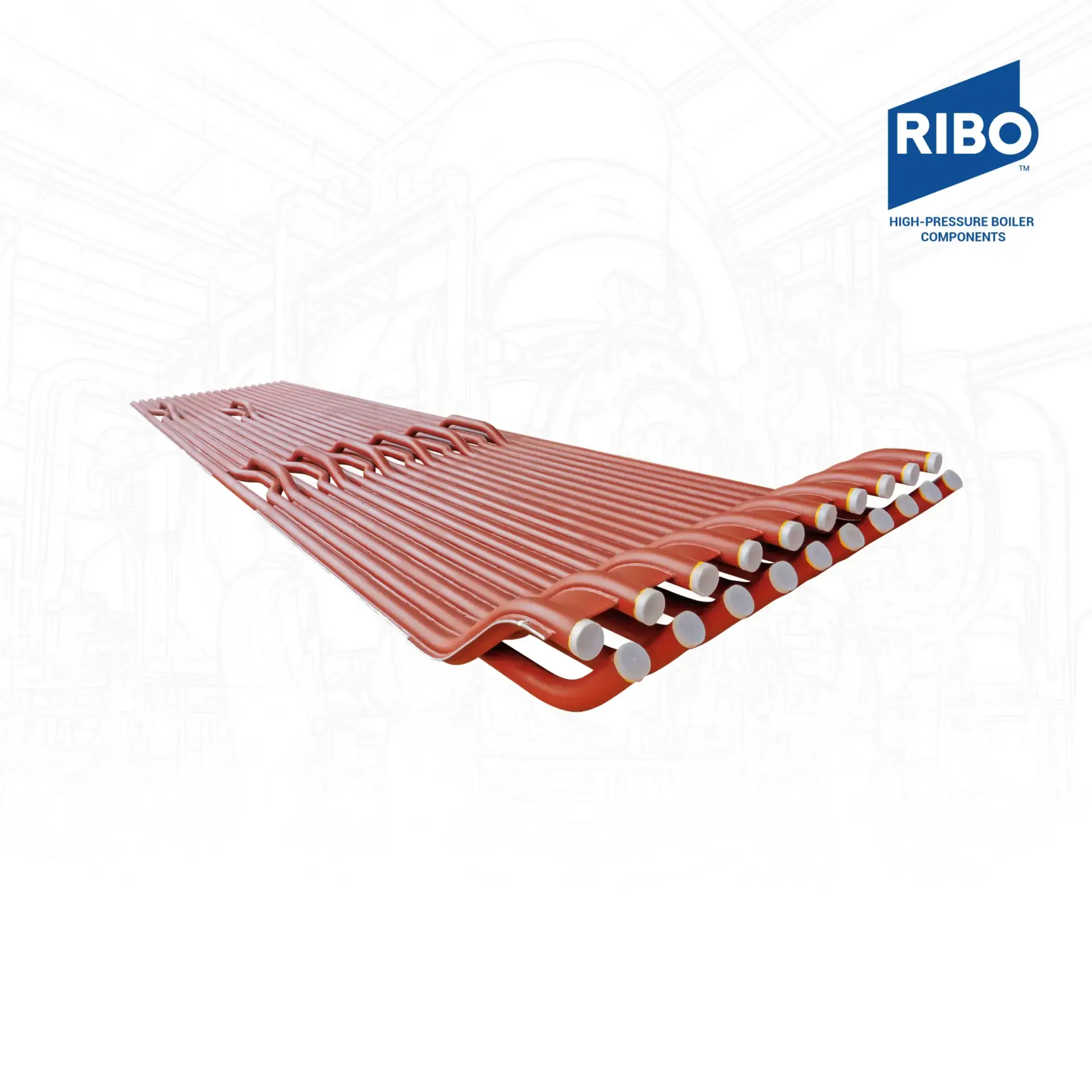

The Bend Panel, seemingly the building blocks for the water wall panel, is an intricate network of tubes that absorbs heat from combustion and transfers it to water or steam. Unlike straight tubes, bend panels have a crucial advantage: the flexibility to manoeuvre around corners and conform to specified forms within the boiler's furnace chamber. This flexibility enables a more optimised design, increasing the surface area of tubes exposed to hot flue gases and, therefore, improving heat transfer efficiency.
Our bend panels are designed to fit tubes with an outer diameter (OD) ranging from 31.8 mm to a substantial 88.9 mm, ensuring compatibility with various boiler designs and heat transfer.
Product Benefits
While the core functionality of economiser in boiler focuses on waste heat recovery, they offer additional benefits:
Thickness
We provide solutions ranging from 3.0 mm to a strong 9.0 mm, establishing the ideal mix between flexibility for bending and the strength required to survive the high pressures and temperatures encountered in a boiler.
Size
We provide panels with a maximum length of 30 metres, enabling the creation of remarkable and powerful boilers. Furthermore, the panels can be constructed with a maximum width of 2.5 metres, allowing them to accommodate a wide range of boiler designs.
Precision
Economiser in boilers help the system last longer by reducing the thermal stress on the components produced by cold feed water entering the boiler.
Terminology Variants for Waterwall Panel
Waterwall Panel, Boiler Waterwall, Membrane Wall Panel, Membrane Waterwall, Tube Wall Panel, Water-Cooled Wall, Furnace Wall Panel, Evaporator Wall Panel, Radiant Panel, Screen Tube, Screen Panel, Studded Waterwall Tube, Plain Tube Panel, Finned Tube Waterwall, Tube Panel, Furnace Wall, Boiler Furnace Wall, Side Panel, Water Wall Tube Panel, Water Wall Furnace Panel, Radiant Wall Panel, Membranwand, Wasserwandrohr, Paroi d’eau, 水冷壁管, 水冷壁面板, ウォータウォールパネル, 수냉벽 패널, Водяная стенка, Painel de parede d’água, Vesiseinä, Vandvægspanel, Panel Dinding Air, Dinding Air Boiler, Boiler Dinding Air, Pipa Waterwall, Su duvarı paneli, Pannello parete d’acqua, Panel de pared de agua, Ściana wodna kotła, แผงผนังน้ำ, Tấm vách nước, جدار مياه الغلاية
